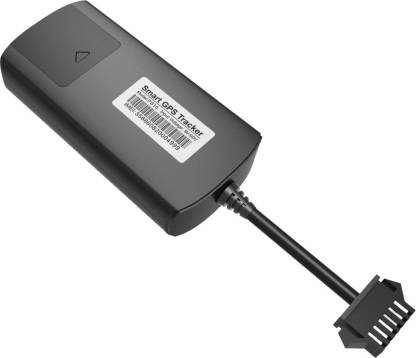

4g  Vehicle Tracker

Technical Specifications

• Hardware Specifications
• Dimensions: 3.43”(L) × 2.17”(W) × 0.49”(H) or  (87× 55 × 12.5mm)
• Weight: 1.76oz (50g)
• Backup Battery: Li-Polymer 190 mAh
• Operating Voltage:  8V to 32V DC
• Operating Temperature: -30℃~ +80℃
• Storage temperature: -40℃ ~ +85℃

• Interfaces
• Digital Input: 1 positive trigger input for ignition detection
• Digital Output: 1 digital output, open drain, 150 mA max drive
  current
• Configurable Input/Output: 1 special I/O can be configured as a negative
  trigger digital input or an open drain output with 150 mA max drive current
• Serial Port: 1 TTL UART port for upgrading and debugging
• Cellular Antenna: Internal only
• GNSS Antenna: Internal only
• LED Indicators: CEL, GNSS
